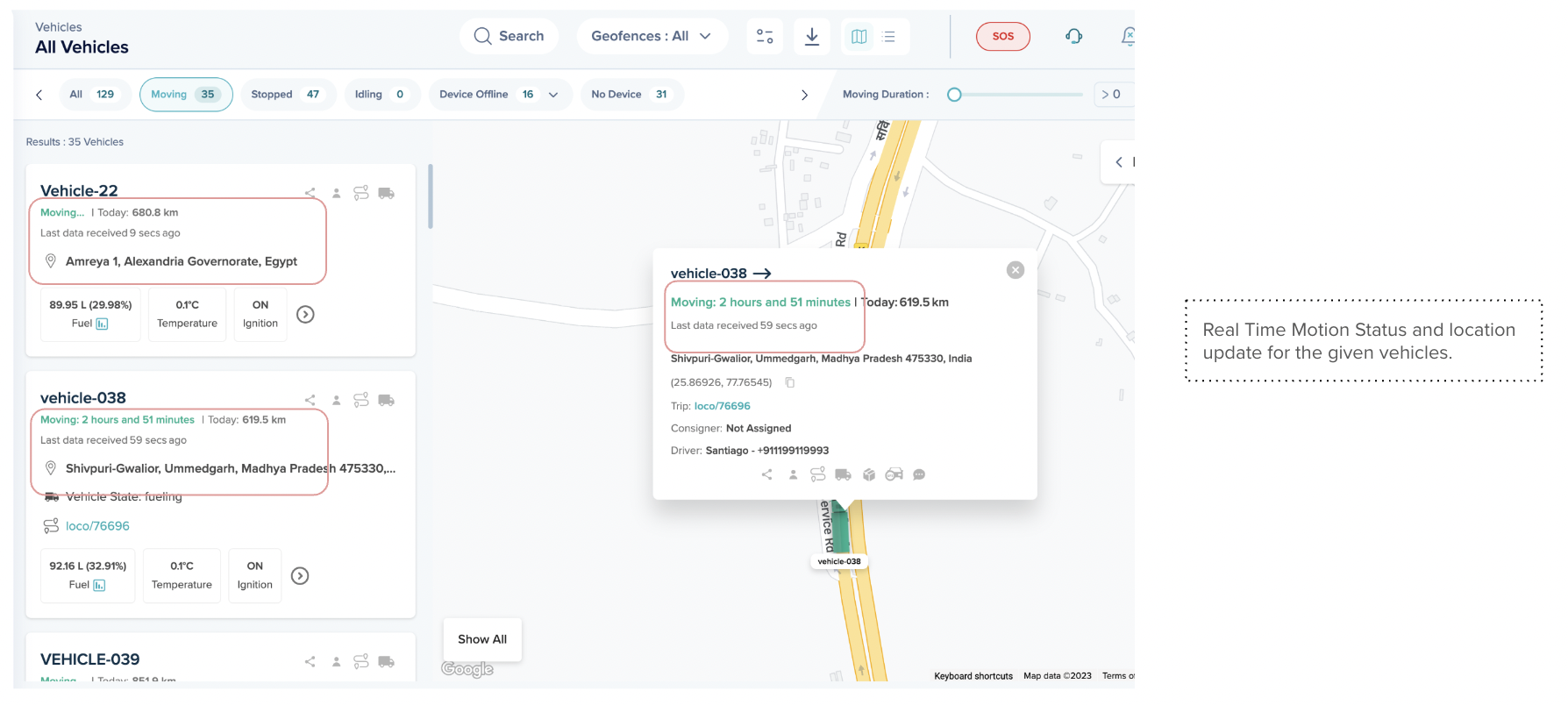

Motion Status provides clarity with regards to the vehicle’s movement summary for a given time period.

For a vehicle with an active device, the system has 5 different motion status defined, as mentioned below:

• Moving

• Stopped

• Idling

• Device Offline

• Low GPS Connectivity

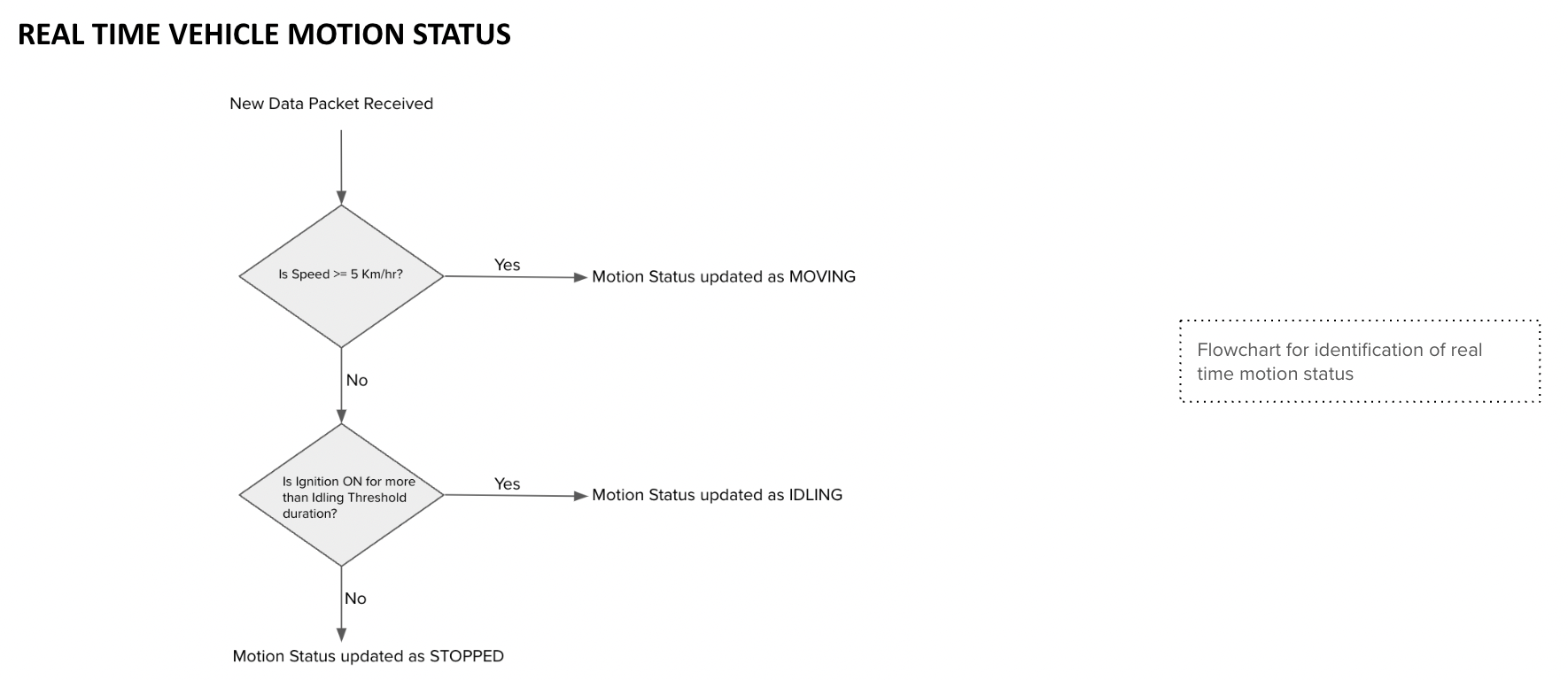

Once the system has identified that the vehicle is STOPPED, we check whether the IGNITION value received in the data packet to check for instances of IDLING

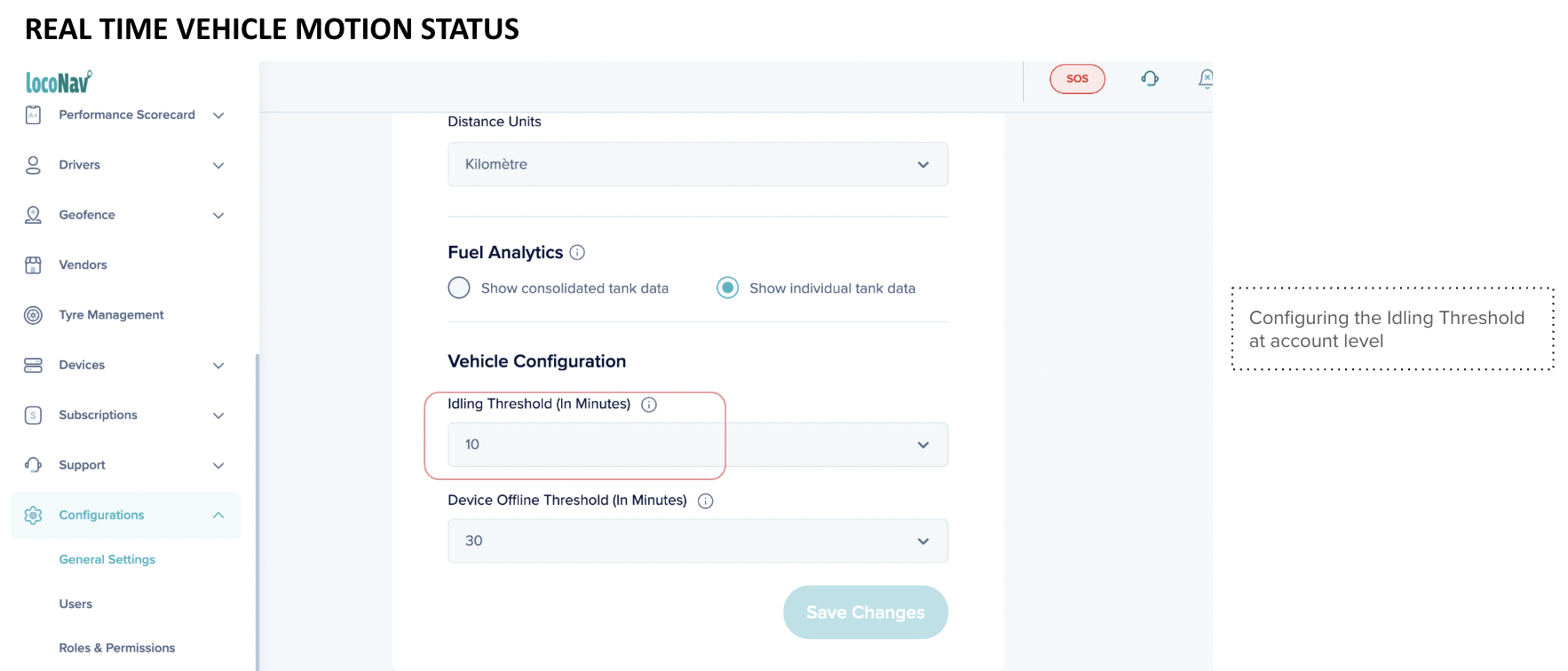

In reality, it is possible that the vehicle might have stopped at a traffic signal and might not be IDLING in general. To differentiate between such on-ground cases from actual instances of IDLING, we have an ‘Idling Threshold’ input parameter.

The default value of Idling Threshold is 10 mins

Identifying DEVICE OFFLINE motion status

This is based on last reliable data packet received based on device gps time

If the timestamp of the last data packet received is older than the ‘Device Offline Threshold’ (default value is 6 hours) time period (from current time). Then we show this as OFFLINE

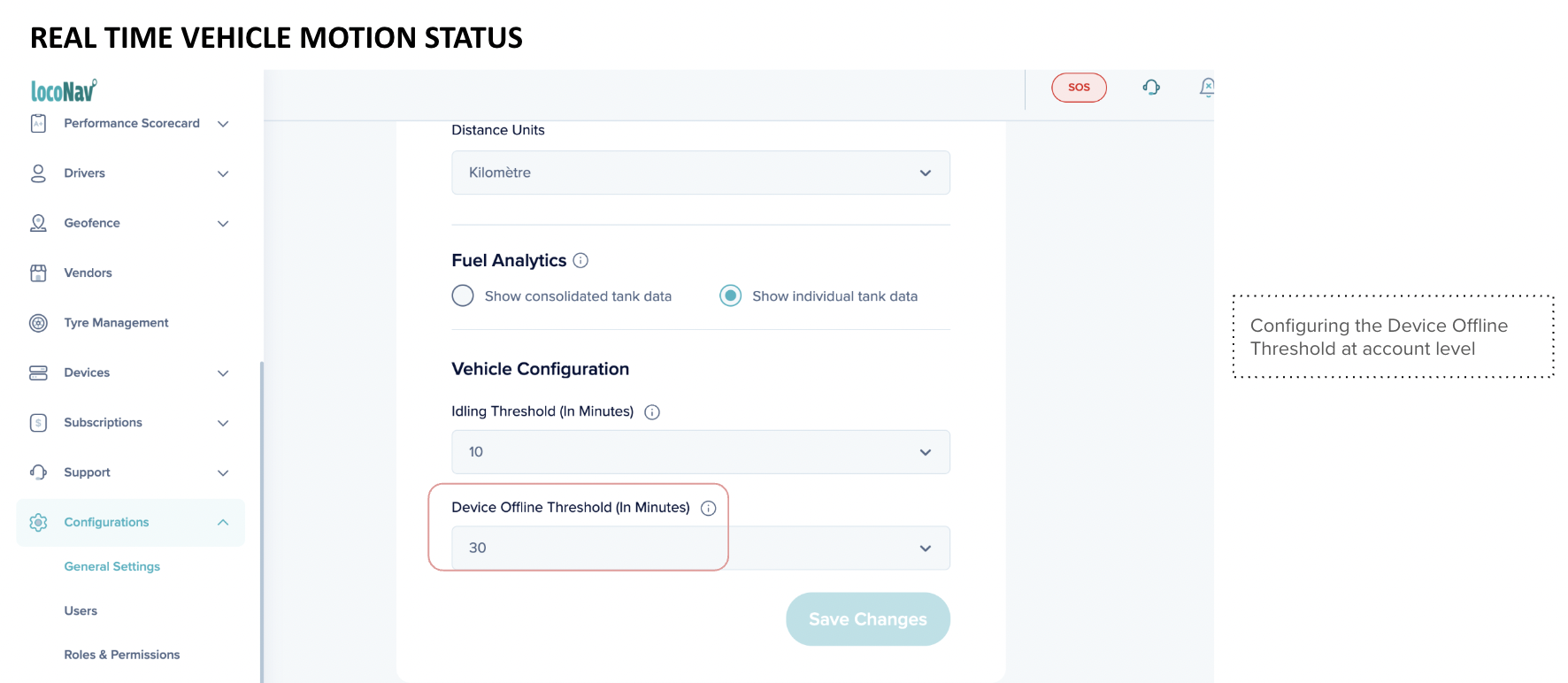

The Device Offline threshold is configurable by the user. The configuration can be updated from the general setting option under the Configuration section on the navigation panel.

Identifying LOW GPS CONNECTIVITY motion status

Sometimes due to network or other connectivity issues, the device does send some false or inaccurate data packets.

Each data packet has an input that describes whether the given data packet is reliable/accurate or not.

If during the default ‘Device Offline Threshold’ duration (ie, last 6 hours) the device has only shared unreliable data packets, then we know that:

• Device is Online (ie, it has GSM or Internet connectivity)

But since is not sending any reliable location packet, we infer that the device is in LOW GPS CONNECTIVITY region

Note: We don’t consider any data be it gps or sensor etc in such cases.
